램프 조광 컨트롤러
Cinema LED Lamp Dimmer Controller
 |
Item : ATG-DIM-DC24/AC220
Description
Outer Box Size (WxDxH mm) – W300×D150×H400mm
Quantity per Box (pcs / kg) – 1pcs / 6.3kg
Operating Temperature (℃) - -30℃~40℃
》 SMPS 24V 300W (FINE Power Supply)
Input Voltage/Frequency AC187~264V/47Hz~63Hz
Current(A) 2.0A / Efficiency 90%/
Output Voltage 24V / Current(A) 11.7A
Protections : Short Circuit / Overload / Current / Voltage
》 Circuit breaker 20A

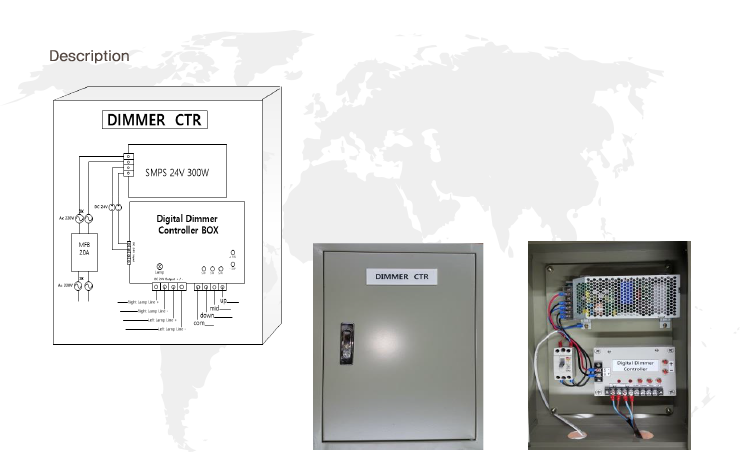

》 Digital Dimmer Controller box
Input Voltage(V) - DC 24V 11.7(A)
Output Voltage(V) – DC 24V 11.7(A) O.V.P 31~33(V)
Lighting Control – PWM Dimming
Lamp Light PAR30 Lensed 95mm E26 Base 12W
Item : ATG-DIM-DC24/AC220
Description
Outer Box Size (WxDxH mm) – W300×D150×H400mm
Quantity per Box (pcs / kg) – 1pcs / 6.3kg
Operating Temperature (℃) - -30℃~40℃
Dimensions (WxDxH mm) - W95×D95×H125mm
Socket Size (mm) – E26 Base
Power Consumption (W) - 15W
SMPS Type – external
Input Voltage (V) - DC 24V
Lighting Control – PWM Dimming
LED Package LED - Epistar
Material - Aluminum Body, Polycarbonate Cover
Beam Angle (°) - 80°
IP Protection Class – IP20
Lifetime (hours) – 30,000
Color Temperature (K) - 2700K~3000K
CRI (Ra) - Ra 80
Luminous Efficacy (lm/W) - 90 lm/W
Luminous Flux (lm) - 956 lm Individual Box Size (WxDxH mm) - W95×D95×H110mm
Outer Box Size (WxDxH mm) - W500×D500×H250mm
Quantity per Box (pcs / kg) – 50pcs / 11kg
Operating Temperature (℃) - -30℃~40℃

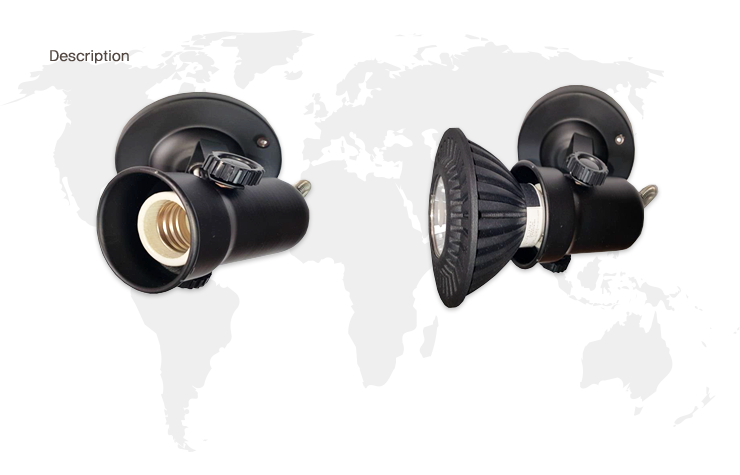

Lamp Light PAR30 base
 |
Item : ATG-P3-BASE-E26
Description
Dimensions (WxDxH mm) – L150×W112×H150
Socket Size (mm) – E26 Base
SMPS Type – external
Input Voltage (V) - DC 24V
Lighting Control – PWM Dimming
Quantity per Box (pcs / kg) – 50pcs / 11kg
Operating Temperature (℃) - -30℃~40℃
Lamp Light PAR30 base
 |
Item : ATG-P3-BASE-E26
Description
Dimensions (WxDxH mm) – L180×W150×H150
Socket Size (mm) –타공 150
SMPS Type – external
Input Voltage (V) - DC 24V
Lighting Control – PWM Dimming
Quantity per Box (pcs / kg) – 20pcs / 12.5kg
Operating Temperature (℃) - -30℃~40℃
Cinema lamp dimming Installation Configuration
 |
